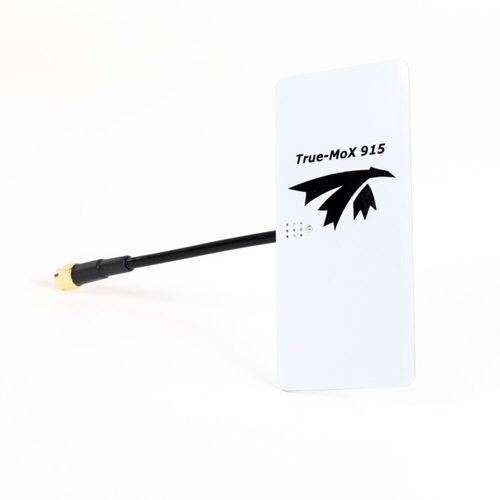

True-Mox 915 Antenna SMA
by True RC

The TrueRC True-MoX 915 Antenna SMA is an advanced 915MHz directional antenna, specifically engineered for TBS Crossfire, FrSky R9M, and other long-range FPV systems. Designed using state-of-the-art 3D electromagnetic simulation tools and RF-rated PCB material, this antenna minimizes interference and maximizes signal efficiency.

Unlike patch antennas, the True-MoX 915 offers a 156-degree beam width, ensuring broad coverage without compromising signal strength. Its patent-pending design significantly reduces interaction with the pilot's body or radio, improving overall performance. For optimal signal transmission, point the long edge of the white panel toward the target area. When positioned vertically, it produces vertical polarization, ideal for stable and long-range connectivity.

Key Features:

• Optimized for TBS Crossfire, FrSky R9M, and 915MHz systems
• 5.4 dBi gain for superior long-range performance
• Ultra-wide 156° beam width for excellent signal coverage
• Patent-pending design minimizes interference from pilot or radio
• RF-rated PCB construction for enhanced durability and efficiency
• SMA connector for universal compatibility
• Lightweight and compact for easy installation

Specifications:

• Frequency Range: 902-925MHz
• Gain: 5.4 dBi
• Beam Width*: 156°
• Beam Width @-3dB**: 133°
• Connector: SMA
• Dimensions: 103mm x 165mm
• Patent Pending

*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.

Patent pending.
