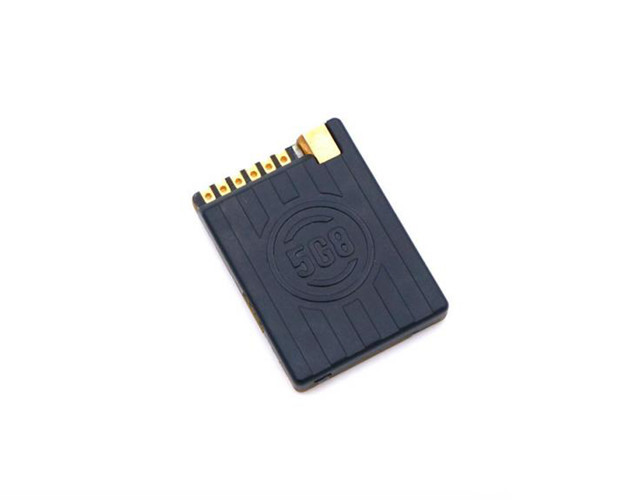

TBS Unify Pro 5.8GHz HV Race 2 MMCX Video Transmitter
by Team Black Sheep
Discontinued
- Brand: Team Black Sheep
- Model: TBS-UNF-HV2
- RMRC Win: 83746
- Shipping Weight: 0.05
- Country of Origin: CN
- Copy Referral Link
This product requires an amateur radio license to operate legally in the US. Please read the Amateur Radio Info before purchasing
Team Black Sheep has done it again! Welcome the new and improved TBS Unify Pro HV Race 2! The V2 version packs everything we love about the Unify Pro Video Transmitter line down into a smaller more robust package, perfect for drone racer builds in all sizes! Get yours today!
Features
- Smallest, lightest video transmitter on the market
- 2-6S input power supported
- 25mW / 100mW / 400mW power settings
- Integrated heat sink
- Ultra-clean transmission (up to 16 pilots at once!)
- PitMode - power up your quad during a race
- Easy OSD, FC and RC channel changes, with fallback button menu
- Robust RF amplifier allows powering up without antenna for hours!
- Clean powerup and video switching
Smart Audio V2.1
Team Race Ready The industry standard SmartAudio technology has been revamped slightly in this final iteration. The power levels have been rearranged to make more sense, doubling range with each setting: 25mW / 100mW* / 400mW*. Additionally, PitMode functionality has been opened up to in-race operation, which makes it possible to all but disable output power through Smart Audio, thus making team races or powered up quads on standby a possibility.
Specifications
- Operating Voltage: 2S - 6S
- Supply current: 600mA
- Operating Temperature: watch for normal airflow
- Audio carrier Frequency: 6.5 MHz
- Video Input Impedance: 75 Ohm
- Weight: 4.2g
- Antenna Connector: MMCX
- Video Format: NTSC/PAL
- Output Power: 13dBm (25mW), 20dBm (100mW), 26dBm (400mW)
- Size: 27 x 20 x 4 (mm)
Package Includes
- 1X TBS Unify Pro 5.8GHz HV Race 2 MMCX Video Transmitter
- 1X Cable set
- 1X Manual
- 1X SmartAdio V2.1 details
| Name | Value |
|---|---|
| MANUFACTURER | Team Black Sheep |
| BAND | 5.8GHz |
| GTIN | 741587432661 |
