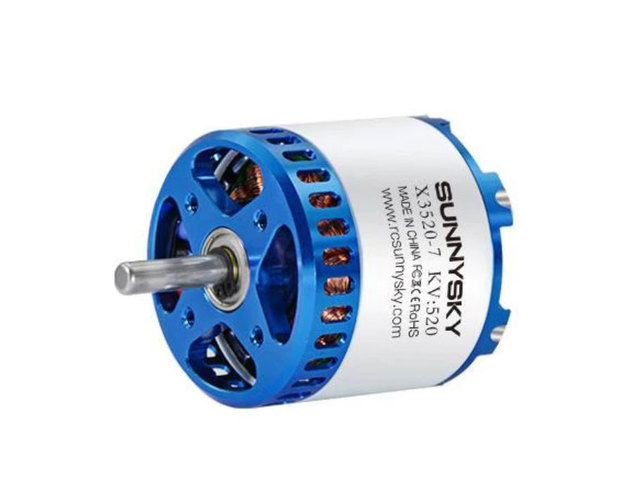

SunnySky X Series V3 X3520 V3 Brushless Motor 560KV
by SunnySky

Enhance your UAV, RC plane, or drone setup with the SunnySky X Series V3 X3520 V3 Brushless Motor 560KV. Engineered to deliver robust thrust, stable performance, and high efficiency, this UAV motor stands out among rc plane motors and drone motors. Featuring an optimized magnetic circuit with N48UH arc magnets, a precise dynamic balance for smoother operation, and original NSK bearings, this brushless motor ensures reduced noise and maximum power. The innovative hollow-carved stator cap and eye-catching blue rotor cap aid in superior heat dissipation. Ideal for aerobatic and 3D model aircraft up to 2500g, this motor pairs perfectly with 6S LiPo setups and recommended prop sizes like APC12x8 and APC13x8. Whether you’re building a drone, an RC plane, or any high-performance model aircraft, rely on SunnySky X3520 V3 for top-tier results.

Key Features:

• Optimized Magnetic Circuit: N48UH arc magnets and a 0.2mm air gap minimize iron loss for enhanced efficiency.
• Precision Bearings & Balance: Original NSK bearings and strict dynamic balancing provide smoother flights and lower noise.
• Innovative Design: Striking blue rotor cap and hollow-carved stator cap improve heat dissipation while adding aesthetic appeal.

Specifications:

• Stator Diameter: 35mm
• Stator Thickness: 20mm
• No. of Stator Slots: 12
• Rotor Diameter: 42.5mm
• Body Length: 45mm
• No. of Rotor Poles: 14
• Motor Kv: 560KV
• Max Lipo Cell: 6S
• ESC Recommendation: 60-80A
• Recommended Prop Sizes (inch): APC12x8, APC12x6, APC13x6.5, APC13x8, APC14x7
• No-load Current: 1.1A/10V
• Motor Resistance: 23mΩ
• Max Continuous Current: 80A/30s
• Max Continuous Power: 2000W
• Weight: 219g
• Weight for Aerobatics Airplane: 2500g (6S APC13x6.5/APC13x8)
• Weight for 3D Airplane: 2200g (6S APC13x6.5/APC13x8)

Applications:
Perfect for aerobatic and 3D airplanes, drones, and other model aircraft requiring a high-quality rc plane motor or drone motor. With a capacity to handle weights up to 2500g, it delivers ample thrust and durability for serious pilots and hobbyists alike.

Why Choose SunnySky X3520 V3?
SunnySky is renowned for creating motors that combine durability, efficiency, and power. The X3520 V3 continues this legacy, ensuring your RC aircraft, drone, or UAV flies with greater stability and performance.
