RFDesign RFD900x V2 TXMOD Bundle
by RFDesign

Introducing the RFDesign RFD900x V2 TXMOD Bundle, an all-in-one long-range telemetry and RC control system designed to enhance your unmanned aerial vehicle (UAV) operations. This bundle seamlessly integrates with radio controllers featuring JR-style transmitter modules, such as FrSky Taranis, JR, and FrSky Horus, enabling extended control distances and real-time telemetry data reception.

Key Features:

• Extended Range Communication: Utilizes the RFD900x long-range telemetry modem to transmit PPM signals from your controller to the UAV, achieving communication distances exceeding 40 km, depending on antenna configuration and ground control station setup.

• Integrated Wi-Fi Connectivity: Built-in 2.4 GHz Wi-Fi module supports both Access Point and Client modes with TCP and UDP protocols, allowing for straightforward web-based configuration and telemetry data streaming to computers or smart devices.

• Secure Data Transmission: Incorporates hardware-accelerated AES encryption with up to 256-bit keys, ensuring secure and reliable communication links.

• Dual Antenna Diversity: Equipped with two RP-SMA antenna ports supporting automatic diversity, enhancing signal stability and reducing interference.

• Versatile Power Input: Accepts a wide input voltage range from 5V to 18V, offering flexibility for various power supply configurations.

• Optimized for MAVLink Protocol: Fully compatible with MAVLink, facilitating seamless integration with ground control station (GCS) software like Mission Planner and QGroundControl.

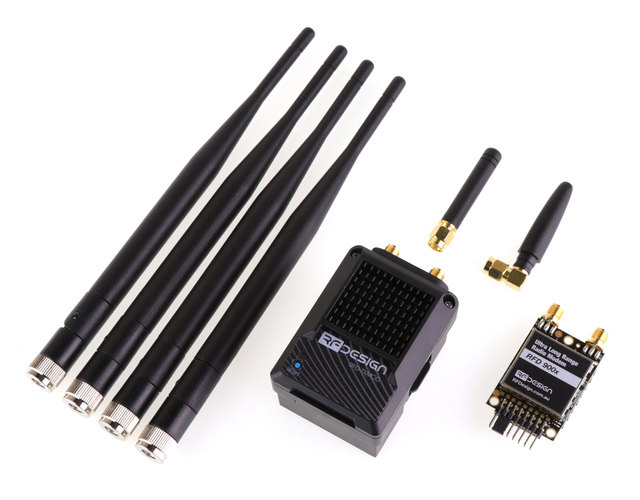

Bundle Components:

• 1 x RFD TXMOD: JR-style module that plugs into compatible RC transmitters, providing a bridge between the RC transmitter and UAV for simultaneous RC PPM data and MAVLink telemetry streams.

• 1 x RFD900x Radio Modem: Pre-installed with firmware version v3.01 or later, ensuring up-to-date performance and features.

• 1 x 868-900MHz Quarter Wave Monopole Antenna (2.1dBi): Standard antenna for robust signal transmission.

• 1 x 868-900MHz Right Angle Quarter Wave Monopole Antenna (2.1dBi): Alternative antenna option for flexible installation.

• 4 x 868-900MHz Half Wave Dipole Antennas (3dBi): Additional antennas to suit various operational requirements.

Specifications:

• Frequency Range: 902–928 MHz (USA) / 915–928 MHz (Australia)

• Transmit Power: 1W (+30dBm), adjustable in 1dB steps

• Air Data Rates: Selectable rates of 12, 56, 64, 100, 125, 200, 224, 500, and 750 kbps

• UART Data Rates: Configurable from 1,200 bps to 1 Mbps

• Receiver Sensitivity: >111 dBm at 12 kbps; 105 dBm at 64 kbps; 98 dBm at 200 kbps

• Dimensions: Approximately 72 mm x 48.5 mm x 38.5 mm

• Weight: Approximately 65g

• Operating Temperature Range: -20°C to +80°C

Applications:

• Long-Range Remote Control (RC) via PPM: Enhances the operational range of your RC system, providing greater flexibility and control over your UAV.

• Ground Control Station (GCS) Telemetry Gateway over Wi-Fi: Streams real-time telemetry data to your GCS, enabling effective monitoring and management of UAV operations.
