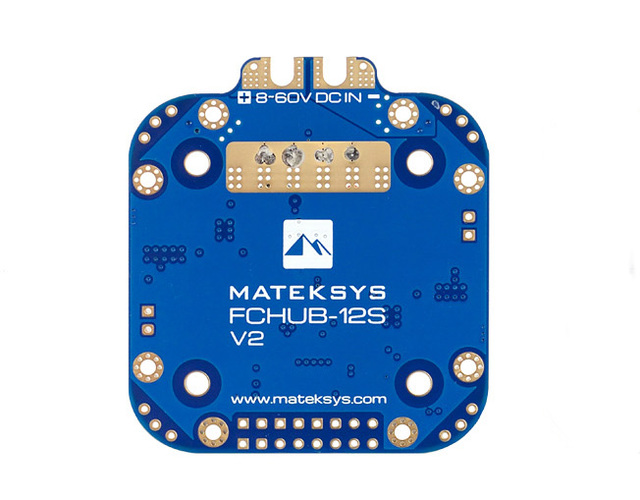

Matek PDB FCHUB-12S V2 for Xclass
by Matek Systems

The Matek XCLASS PDB FCHUB-12S is a high-performance power distribution board (PDB) designed for X-Class racing drones, large UAVs, and heavy-lift multirotors. With an input voltage range of 8V to 60V (3-12S LiPo), this PDB efficiently delivers power to your ESCs, flight controllers, and onboard systems.

Supporting up to 4x 70A continuous current (110A burst) per ESC pad, this board is built for high-power applications. It integrates a 440A current sensor with a 3.3V ADC output for real-time power monitoring. Additionally, it features BEC outputs at 5V, 12V, and 3.3V, providing stable power for flight controllers, servos, video transmitters (VTX), and LED systems.

With ESC telemetry support, overcurrent protection, and self-recovery features, the FCHUB-12S is a reliable and efficient power hub for high-performance drones and UAVs.

Specifications:

Power & Current Handling:

• Input Voltage: 8V – 60V (3S-12S LiPo)
• ESC Output: 4x 70A continuous, 4x 110A burst
• Current Sensor: 440A, 3.3V ADC (Scale 75)
• Integrated 1K:20K Voltage Divider

Connectivity & ESC Integration:

• 4x ESC Power, Signal, and Telemetry Pads
• JST-SH 8-pin Connector for Power and Telemetry
• Pad Functions:
  • V: Selectable 12V or VBat voltage
  • GND: Ground
  • CURR: Current sensor signal
  • TLM: ESC telemetry (BLHeli32 support)
  • S1 – S4: ESC signal outputs

BEC Outputs:

• 5V BEC:
  • Voltage: 5.1V ± 0.1V DC
  • Continuous Current: 5A (Max 6A)
  • Short-Circuit Tolerant (2 sec), Overcurrent Protection & Self-Recovery
• 12V BEC:
  • Voltage: 12.0V ± 0.2V (if input ≥12V)
  • Continuous Current: 4A (Max 5A)
  • Short-Circuit Tolerant (2 sec), Overcurrent Protection & Self-Recovery
• Switchable 12V Output (12VSW Pad):
  • Supports ON/OFF switching via PINIO control
  • Provides 2A continuous current for powering VTX, LEDs, etc.
• 3.3V BEC:
  • Linear Regulator, 500mA Continuous Current

Physical & Mounting:

• Mounting Holes: 30.5 x 30.5mm, Φ3mm
• Dimensions: 55 x 50 x 6 mm
• Weight: 21g

Included in the Package:

• 1x Matek FCHUB-12S V2 Power Distribution Board
• 1x JST-SH1.0 8-pin Cable (5cm)
• 2x JST-SH1.0 8-pin Connectors

Applications:

• Ideal for X-Class drones, heavy-lift multirotors, and large UAVs
• Delivers high current for high-power ESCs
• Supports ESC telemetry for enhanced power monitoring
• Compatible with Betaflight, INAV, and ArduPilot flight controllers
