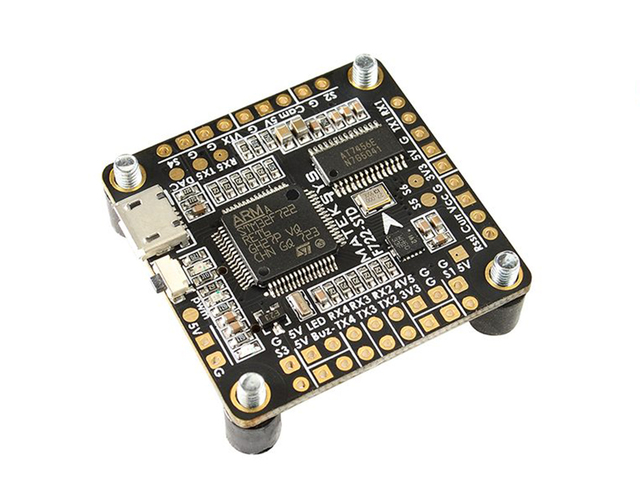

Matek Flight Controller F722-STD
by Matek Systems

Specs & Features

For setup and wiring go here

• MCU: 216MHz STM32F722RET6
• IMU: 32K ICM20602 gyro/accelerometer (SPI)
• Baro: BMP280 (I2C)
• OSD: BetaFlight OSD w/ AT7456E chip
• Blackbox: MicroSD card slot (SD/SDHC)
• VCP, UART1, UART2, UART3, UART4, UART5
• PPM/UART Shared: UART2-RX
• Battery Voltage Sensor: 1:10
• Current Sensor: No (FCHUB-6S, FCHUB-VTX option)
• BEC 5V: No (FCHUB-6S, FCHUB-VTX option)
• LDO 3.3V: Max.300mA
• I2C1 SDA & SCL: Yes
• Camera control: Yes
• DAC: Yes
• WS2812 Led Strip : Yes
• Beeper : Yes
• RSSI: Yes

Board Features

• 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
• 7x PWM / DShot outputs without conflict
• 5x UARTs
• 1x Group of G/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND
• 1x I2C1
• 4x pairs of corner pads for ESC Signal/GND connections (DSHOT compatible)
• 1x Side-press button for BOOT(DFU) mode
• 1x 16pin bottom mounted FFC Slot for FCHUB-6S or FCHUB-VTX connection
• 36x36mm PCB with 30.5mm mounting holes

Package Includes

• w/ 2x 0.5mm*16Pin 5cm Flexible Flat Cable
• w/ 4pcs M3 Anti-vibration Standoffs
