Holybro S500 v2 Development Kit w/ 915MHz Telemetry Radio
by Holybro

Please contact us if you would like a quote for special order on this product.

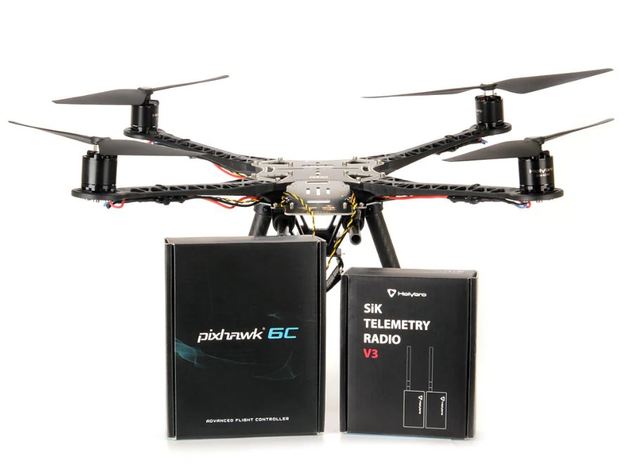

S500 v2 Development Kit w/ 915MHz Telemetry Radio

The Holybro S500 V2 Kit is affordable, lightweight, simple, easy to assemble, and no soldering required. This is a complete kit that includes almost everything you need to fly. All you will need is a battery and an RC system (optional). It is perfectly compatible with various Holybro Flight Controller such as the Pixhawk4, Pixhawk4 Mini, Pix32 v5, and Durandal.

This S500 frame composed of mixture of materials. The arms are made of high strength, ultra-durable Polyamide-Nylon composite material reinforced with carbon fiber rod through the center. The landing gear consists of 16mm & 10mm diameter carbon fiber tubes connected via plastic tee connectors that has been thickened and strengthened compare to the previous version.

This is an excellent strong and lightweight quadcopter frame with landing gear and 1.5mm top and bottom plate. The bottom plate also has a power distribution board (PDB) build-in for neat and easy wiring. It also has an adjustable battery mount to achieve the perfect weight distribution. The bottom frame is ready to take a whole host of camera mounts and gimbals making it perfect for various applications.

Assembly of this frame is super simple due to the pre-threaded sleeves for all the frame bolts, so lock nuts are not required. It utilizes one size bolts for the entire build which means you only need one size hex for the assembly.

S500 V2 Development Kit - Pixhawk 6C(915MHz Telemetry Radio) Contents:

• Pixhawk 6C Flight Controller (Plastic Case)
• PM02 V3-12S Power Module
• M8N GPS Module
• SiK Telemetry Radio V3 915MHz
• S500 V2 Frame Kit
• Motors - Holybro 2216 KV920 Motor (4 pcs)
• ESCs - BLHeli S ESC 20A (4 pcs)
• 1045 Propellers (4 pcs)

Recommended Battery Specification: 4S 5000mAh Lipo
Max payload: Up to 1kg (Tested at 70% throttle / with 4S 5000 mAh battery)
