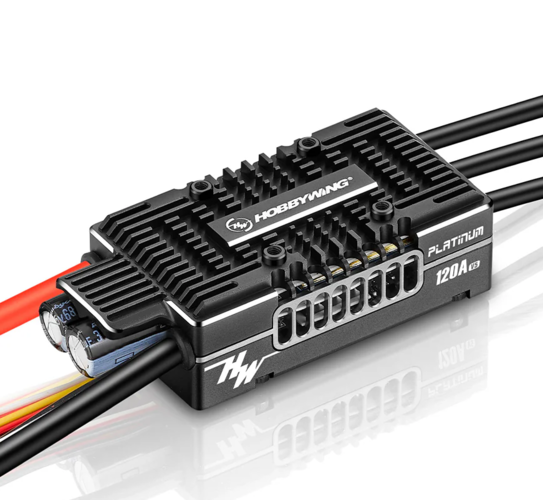

HobbyWing Platinum Pro 120A V5 ESC with BEC
by HobbyWing

The HobbyWing Platinum Pro 120A V5 ESC with BEC is a high-performance electronic speed controller engineered for RC enthusiasts who demand efficiency, stability, and enhanced flight experience. The Platinum V5 series introduces an innovative heat sink design that cools with airflow, optimizing both external and internal cooling for extended ESC durability and reliability. Equipped with a powerful built-in 12V switch-mode BEC, it offers adjustable output voltage ranging from 5V to 12V, with a peak current output of 35A, ideal for power-hungry servo setups. The ESC is compatible with popular data return protocols like Mikado VBar System and Futaba S.BUS2, enabling real-time parameter adjustments and status monitoring.

Enhanced with DEO (Driving Efficiency Optimization) technology, this ESC ensures a faster throttle response, improved flight stability, greater efficiency, and longer battery life while minimizing ESC temperature. Perfectly suited for 420-520 class electric helicopters and fixed-wing models, the HobbyWing Platinum Pro 120A V5 ESC delivers an unparalleled performance experience for serious RC pilots.

Specifications:

• Model: Platinum 120A V5
• Continuous/Peak Current: 120A/150A
• Input Voltage: 3-8S LiPo battery
• BEC: Switch Mode BEC, adjustable voltage (5-12V, 0.1V increments); output current 10A continuous, 30A peak
• Input/Output Wires: 1x black and 1x red 10AWG silicone wires / 3x black 12AWG silicone wires
• Independent Parameter Programming Interface: Connects to LCD program box or OTA module, or powers the cooling fan
• LED Light: Displays status and fault alerts
• Size/Weight: 83.2 x 37.1 x 22.5 mm; 150.4g (with wires, no fan)
• Application: 420-520 class electric helicopter (main blade length 420-520mm) or fixed-wing
