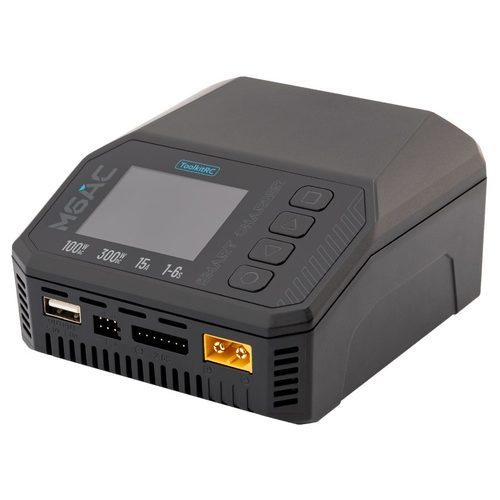

ToolkitRC M6AC Charger
by ToolKitRC

The ToolkitRC M6AC Charger is a versatile, high-performance charging solution designed to meet the needs of RC hobbyists and professionals alike. With dual AC/DC input capability, a robust 15A charging current, and a powerful 100W AC or 300W DC output, the M6AC offers exceptional efficiency for charging and maintaining your batteries. Its 2.0" IPS LCD smart display ensures a user-friendly interface and clear visibility, even in bright environments.

Not just a charger, the M6AC doubles as a versatile tool with advanced auxiliary functions, including precise internal resistance measurement, voltage testing, and PWM/PPM/SBUS signal analysis. Equipped with comprehensive safety protections and a high-accuracy balancing system (<0.005V deviation), this charger ensures the longevity and performance of your batteries.

Whether you're charging LiPo, LiHV, LiFe, NiMH, or Pb batteries, the M6AC's compact design, lightweight build, and wide range of supported battery types make it the perfect companion for your RC charging needs.

Specifications:

General:

• Product Size: 108×106×60mm
• Product Weight: 350g
• Packaging Size: 144×158×63mm
• Packaging Weight: 510g
• LCD: IPS 2.0″ LCD, 320×240 px

Charging Features:

• Input Voltage: AC 100-240V (120W Max) / DC 7-35V (30A Max)
• Supported Battery Types:
  • LiPo, LiHV, LiFe, LiIon, LTO (1-6S)
  • NiMH (1-16S), Pb (1-10S)
• Balance Current: 1000mA @ 4.2V
• Balance Accuracy: <0.005V
• Charging Power:
  • 0.1-15A @ 300W (Recycle Mode)
  • 0.1-3A @ 15W (Internal Mode)
• USB Output: 5.0V/1.0A (10W)

Measurement Functions:

• Voltage: 1.0V-5.0V (1-6S)
• Internal Resistance: 0.1mΩ-99mΩ (1-6S)
• PWM: 880us-2200us @ 20-400Hz
• PPM: 880us-2200us × 8CH @ 20-50Hz
• SBUS: 880us-2200us × 16CH @ 20-100Hz

Output Functions:

• PWM: 500us-2500us @ 20-1000Hz
• PPM: 880us-2200us × 8CH @ 50Hz
• SBUS: 880us-2200us × 16CH @ 74Hz
• Power: 0.5-15A @ 1-28V (CC+CV Mode)

Included in the Box:

• M6AC Charger × 1
• AC Input Cable × 1
• USB Cable × 1
• Quick Manual × 1
• Screen Protector × 1

Experience unparalleled convenience and efficiency with the ToolkitRC M6AC Charger, your all-in-one charging and diagnostic tool for RC batteries!
