STRIX Power Stix 1s Charging Board - Up to 6 at once!
by STRIX

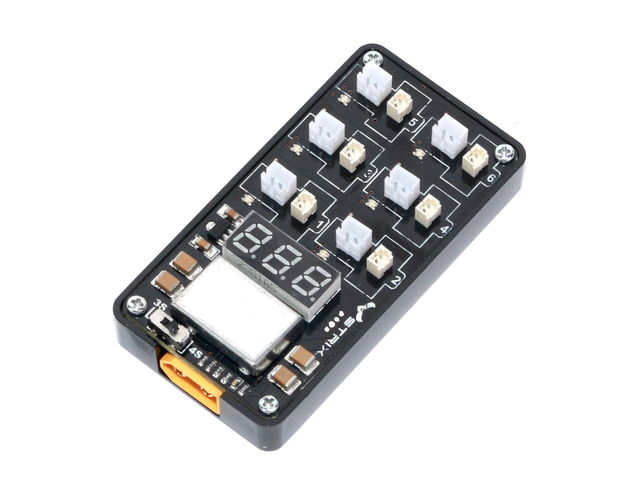

Introducing the Strix Power Stix Portable Charger for charging 1s batteries!​

Features

• XT60 input power connector for field charging.
• Allows for both Picoblade 1.25 (Traditional) and JST PH 2.0 (Larger) power plugs.
• Charge up to 6 batteries at once.
• Individual charging (Not parallel).
• 3s or 4s input with voltage cutoff protection.
• Charges at ~400 milliamps per port with a 4.20v cutoff.
• LEDs indicate when charge is complete by changing color.

Specifications

• Weight: 36g
• ​Dimensions: 83x43x17mm
• ​Input: 3s - 4s Selectable
• Cutoff Voltage: 11.1v (3s), 15.1v (4s)
• Output: Fixed at ~400 milliamps
• 4.20v cell charging cutoff (+- 0.5% margin of error)

Optional AC Wall Adapter

Note: Ports are numbered 1-6. Do not put more than one battery on a single port. For example: do not insert one battery on the Picoblade 1.25 plug and another on the same port with the PH 2.0 plug.
