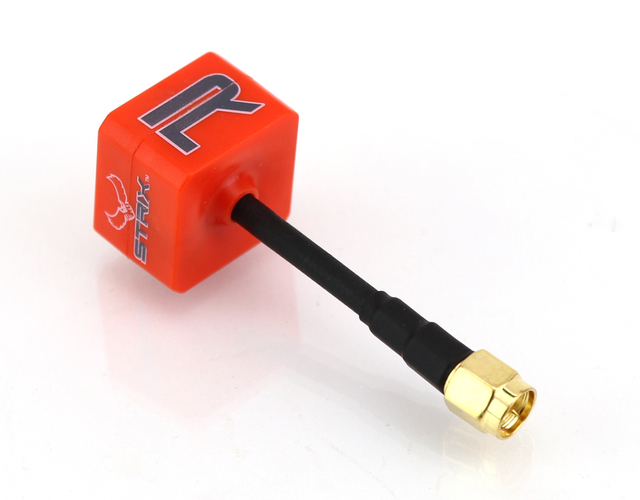

STRIX Hoot-R 5.8GHz RHCP Antenna - SMA (1PC)
by STRIX

Introducing the STRIX Hoot-R 5.8 GHz SMA antenna, with a money back guarantee*!

Years in the making, STRIX RC and TrueRC are proud to bring you one of the largest steps forward in antenna design in years, the STRIX Hoot antenna. Starting with a classic circular polarized antenna design from the 1940’s called the Lindenblad⁽¹⁾, with modern design tools and innovative manufacturing techniques, we’re bringing this classic design to the 21st century as another option for the FPV community.

As with many products in this hobby, the inspiration for this antenna came from experimentation with an existing lower frequency design scaled to our current frequencies. Many hobbyists and innovators on FPVLAB tried variations and modeling of the Lindenblad design as far back as 2012. It wasn’t until Hugo at TrueRC was able to model some unique implementations using modern software that the Hoot antenna design was able to be developed. Using a unique combination of microstrip and ladder line transitions, excellent RF matching is achieved to allow more of the signal to be transferred between the antenna and the feed line. The dimensions, angles, materials, and locations of all the elements were then adjusted using the modeling software to yield the best results possible.

The case is made of lightweight but strong polycarbonate material, allowing for a robustly built antenna that can take the abuses of standard FPV use. The antenna design itself has been optimized to work in conjunction with the case material to prevent unnecessary RF losses due to changes in the material surrounding the antenna.

*Money back guarantee! Try this antenna out for 7 days after you receive it, and if you don't think it's performance is great you can contact us via support to return the antenna to us for a refund. You're going to be amazed at the performance, though, so we don't expect too many to come back to us.

Key Features and Specifications

• Antenna Type: Lindenblad
• Connector: Durable crimped SMA
• Feed Line: RG141, capable of bending and holding a position.
• Dimensions: 64x22x22mm (45mm stem)
• Weight: Only 9.5g
• Gain: 1.3dBic
• Axial Ratio: 0.85 - 0.90
• SWR: As low as 1.2:1, below 1.5:1 across the standard 5.8GHz FPV Bands, and below 2:1 from 5.0-6.0GHz
• Polarization: Right Hand Circular Polarized (RHCP)
• Case Material: Filled Durable Polycarbonate
• Designed by: TrueRC
• Element and Feed Manufacturing: Canada
• Cable and Final Assembly: China
• Can be used for digital antennas like the Prosight

Package includes:

• 1 RHCP Hoot Antenna
• 1 STRIX Sticker

¹G. Brown and O. Woodward Jr. Circularly Polarized Omnidirectional Antenna, RCA Review, Vol 8, no. 2, Jun 1947, pp 259-269
