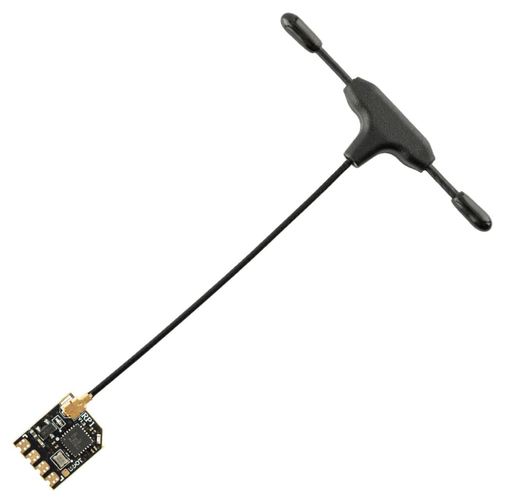

RadioMaster - RP1 2.4ghz ELRS Nano Receiver V2
by RadioMaster

Description
Experience next-level FPV performance with the RadioMaster RP1 2.4GHz ELRS Nano Receiver V2. Built around open-source ExpressLRS technology, the RP1 features an ESP8285 MCU and SX1280 RF chip for ultra-low latency and reliable long-range control. A built-in TCXO (temperature-compensated crystal oscillator) ensures stable signal reception in challenging environments, while integrated Wi-Fi enables easy firmware updates and configuration via a convenient WebUI.

Designed for both FPV racing and long-range flight, the RP1 is compatible with all 2.4GHz ExpressLRS modules and built-in 2.4GHz ELRS transmitters. Its compact Nano size and ultra-light design make it a perfect fit for drones, RC aircraft, and tight builds. The improved PCB design offers better heat dissipation, while the upgraded rigid T antenna provides durability and superior reception. With a simple CRSF bus interface, LED indicator on top, and user-friendly solder pads, the RP1 is the go-to receiver for RC hobbyists seeking uncompromised performance.

Specifications

• Item: RP1 Nano ExpressLRS 2.4GHz Receiver
• Type: ISM
• MCU: ESP8285
• RF Chip: SEMTECH SX1281
• Telemetry RF Power: 10mW
• Antenna: 65mm 2.4GHz T Antenna
• Frequency Range: 2.404 – 2.479GHz
• Maximum Receive Refresh Rate: 500Hz / F1000Hz
• Minimum Receiver Refresh Rate: 25Hz
• Working Voltage: 5V
• Weight: 2.2g (Including antenna)
• Dimensions: 13mm × 11mm × 3mm
• Firmware Version: ExpressLRS v2.4 pre-installed
• Firmware Target: RadioMaster RP1/2 2400 RX
• Bus Interface: CRSF

Package Includes

• 1 × RP1 ExpressLRS 2.4GHz Nano Receiver
• 1 × 65mm UFL 2.4GHz T Antenna
• 1 × User Manual
• 1 × CRSF Wire
